BS3084 Zipper Reciprocating Fatigue Tester Machine For Textile And Apparel

Name: BS3084 Zipper Reciprocating Fatigue Tester Machine For Textile And Apparel
Brand: SKYLINE
Price: 1 USD

Buy cheap BS3084 Zipper Reciprocating Fatigue Tester Machine For Textile And Apparel product

Brand Name : SKYLINE

Model Number : SL-F33

Certification : CE

Place of Origin : China

MOQ : 1 unit

Payment Terms : Western Union, MoneyGram, T/T

Supply Ability : 1 pcs/ month

Delivery Time : 15 working days

Packaging Details : plywood case

SKYLINE : Zipper Reciprocating Fatigue Tester

Speed : 30/min

Force : 0-10 Kg lateral force. 0-5 Kg longitudinal force

Angle : Open: 30degree. Close: 60degree

Dimension : 480 x 370 x600mm

Weight : 65kgs

Standards : BS3084

Contact Now

BS3084 Zipper Fatigue Pulling Tester

Product introduction

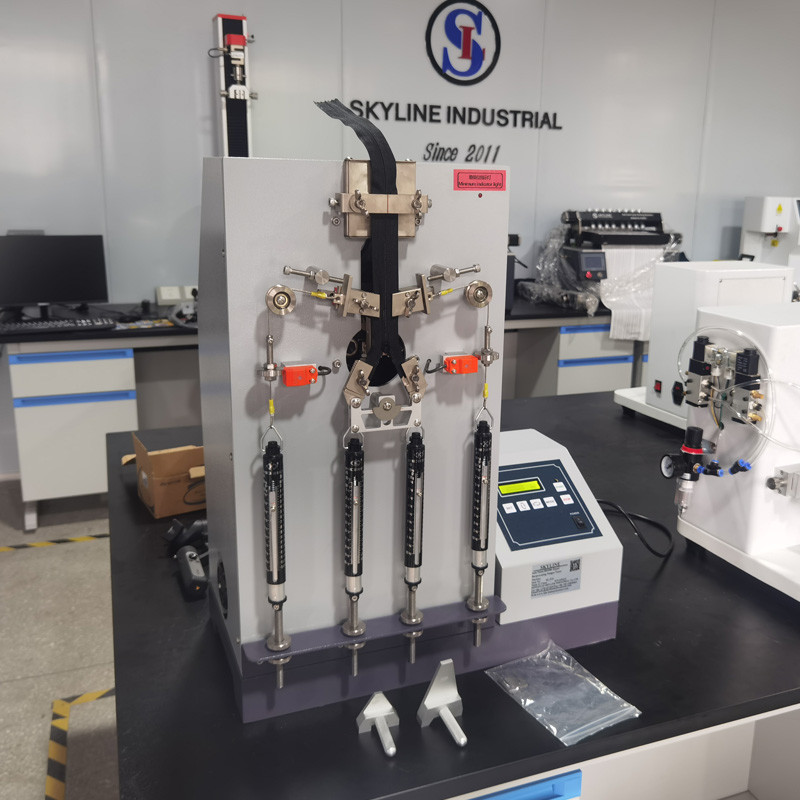

Zipper Tester, to determine the resistance to reciprocation of zipper (slide fastener), the test specimen is subjected to a specified number of cyclic operations whilst under lateral and longitudinal tension.
Zipper Tester catches the head of zipper to do reciprocating movement in a constant speed for 30 times per minute, integral counter to stop the drive when a pre-selected count has been reached

Specifications

Horizontal fixture width	25mm
Test speed	30cpm
Reciprocating stroke	75mm
Angle	Open: 30degree. Close: 60degree
Counter	LCD, 0-999999
Power Supply	AC 220V 50/60HZ
Dimensions	480 x 370 x600mm
Weight	65kg
Standard	CNS -1083 , BS 3084 , QB/T2171
Standard accessories	1pc	60° Angle gauge
	1pc	30° Angle gauge
	8pcs	Positioning pieces
	1pc	Power line

Zipper Reciprocation Tester.pdf
