ISO 22776 / DIN 3415 Hook And Loop Tape Endurance Tester

Name: ISO 22776 DIN 3415 Hook And Loop Tape Endurance Tester
Brand: SKYLINE
Price: 1 USD

Buy cheap ISO 22776 / DIN 3415 Hook And Loop Tape Endurance Tester product

Brand Name : SKYLINE

Model Number : SL-L30

Certification : CE

Place of Origin : China

MOQ : 1 unit

Price : Negoitable

Payment Terms : Western Union, MoneyGram, T/T

Supply Ability : 1 pcs/ month

Delivery Time : 15 working days

Packaging Details : plywood case

SKYLINE : Footwear Testing Equipment

Roller Dia : 136mm

Roller Width : 80mm

Power : AC220V 90W

Dimensions : (W×D×H)45*55*57cm

Standards : SATRA TM103

Contact Now

SATRA TM 103 Footwear Testing Equipment Digital Magic Tape Velcro Fatigue Tester

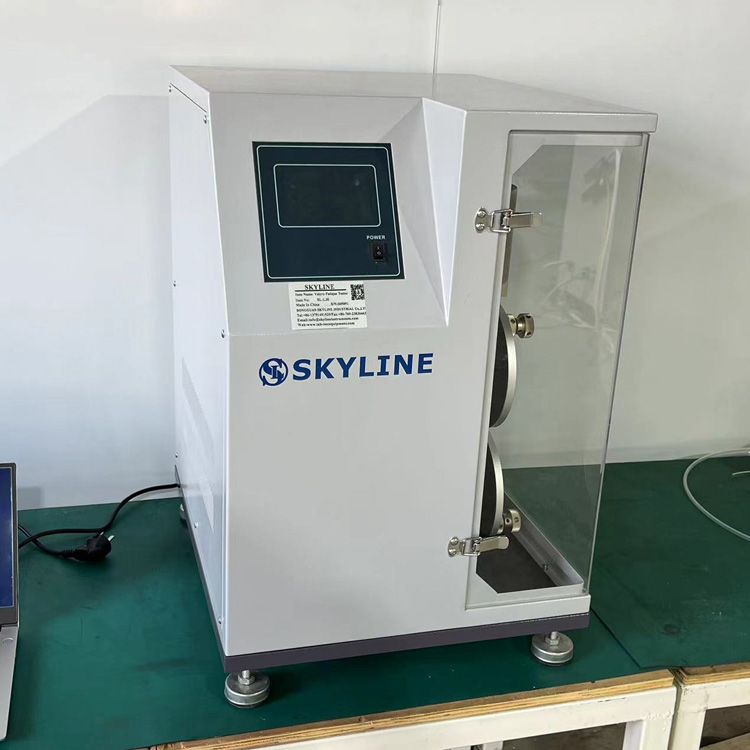

Product introduction

This machine is suitable for detecting the binding capacity of the hook and loop fastener ( Velcro tape) after the repeated

stripping and fitting action.

In use Velcro repeated stripping and fit the action, so after a certain number of times, then rolling sample to the weight of the wheel itself, so that uniform fit measured adhesion forces with some of the adhesion strength

Technical parameters

Rolling speed	72rpm
Load	5kg
Roller Dia	136mm
Roller Width	80mm
Counter LCD display	0-999,999
Dimension (W×D×H)	455557cm
Power	AC220V 90W

Speed	60+/-5r/min
Load	1+/-0.1N/mm
Counter	LCD.0-999.999
Dimensions	450 x 550 x 570mm ( L x W x H )
Weight	70kg
Standards	DIN-3415 BS EN ISO 22776 SATRA TM123
Standard Accessories	Weights pack of 3 Weights device pack of 1 Handle pack of 1 Power Line pack of 1

Velcro Fatigue Tester.pdf

What is Satra testing?
SATRA is an independent research and testing organisation established in the UK in 1919. ... SATRA has its own chemicals analysis laboratory for testing restricted substances in accordance with UK and European REACH, and US chemicals regulations for which it is CPSC-accredited.
