ISO 27668-1 Zig Zag Writing Test Equipment 50g Load

Name: ISO 276681 Zig Zag Writing Test Equipment 50g Load
Brand: SKYLINE
Price: 1 USD

Brand Name : SKYLINE

Model Number : SL-PL002

Certification : Calibration certificate

Place of Origin : China

MOQ : 1 unit

Price : Negoitable

Payment Terms : Western Union, T/T, MoneyGram

Supply Ability : 2 pcs/ month

Delivery Time : 20 working days

Packaging Details : Plywood case

SKYLINE : Zig Zag Write Test Equipment

Load weight weight : 50g+/-0.5g

Maximum sample diameter : ≤φ24mm

Writing angle : 60°~90° adjustable

Sample single stroke / full stroke : 1.375 inches/2.75 inches

Weight : 60kg

Packing dimension : 80cm*66cm*66cm

Gross weight : 90kg

Contact Now

Zig Zag Writing Test Equipment

Use

This Writing Test Equipment is used to detect the refill of a pen, and draw a Z shape at a certain speed to check whether the stitching meets the performance required by Article 3.6 of ISO27668-1.

Principle

This test equipment simulates the state of writing with a pen, puts the sample on a certain load and makes it write a Z mark at a certain speed, and checks the structure and performance of the sample.

According to the standard

This test equipment is made with reference to the requirements of Article 3.6 of ISO27668-1.

Technical parameters

Sample	Writing pen
Load weight weight	50g+/-0.5g
Maximum sample diameter	≤φ24mm
Number of samples	8 pcs/time
Sample single stroke / full stroke	1.375 inches/2.75 inches
Writing speed	1.0m/min-10.0m/min adjustable
Refill Rotation speed	0.1-3.0 revolutions/min adjustable
Line spacing between 1mm and 5mm	1.0mm-10.0mm adjustable
Writing angle	60°~90° adjustable
Volume (WxDxH)	72cm57cm46cm
Weight	≈60Kg
Power Supply	220V, 20A

ISO 27668-1 Zig Zag Writing Test Equipment 50g Load

Product Tags:

Zig Zag Writing Test Equipment

50g Load Writing Test Equipment

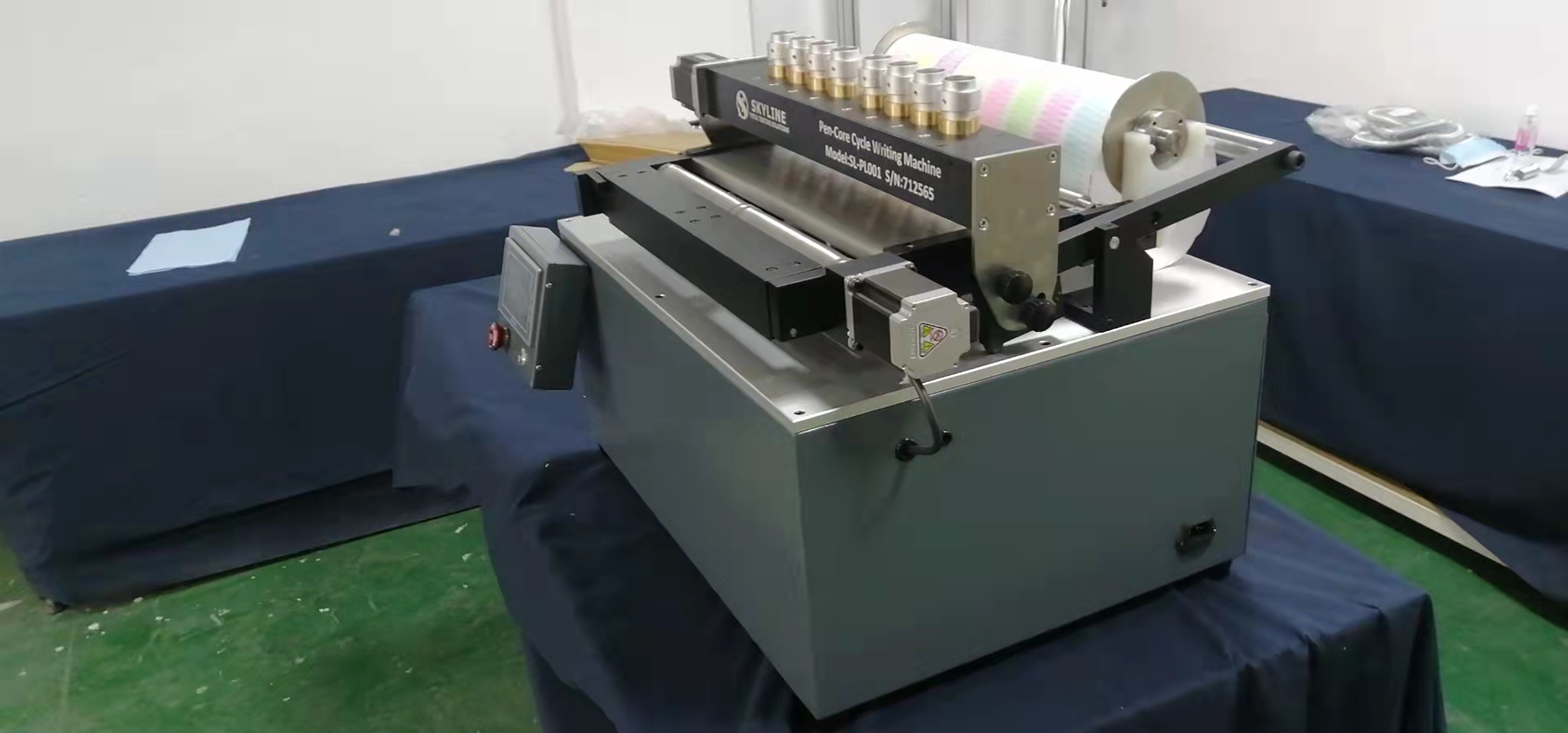

ISO 27668-1 Zig Zag Writing Test Equipment 50g Load Images
