Stainless Steel Electronic Testing Equipment Multi-segment Spring Hammer Impactor

Name: Stainless Steel Electronic Testing Equipment Multisegment Spring Hammer Impactor
Brand: SKYLINE
Price: 1 USD

Buy cheap Stainless Steel Electronic Testing Equipment Multi-segment Spring Hammer Impactor product

Brand Name : SKYLINE

Model Number : SL-SE03

Certification : Calibration Certificate

Place of Origin : China

MOQ : 1 unit

Price : Negoitable

Payment Terms : Western Union, MoneyGram, T/T

Supply Ability : 1 pcs/ month

Delivery Time : 5 working days

Packaging Details : plywood case

SKYLINE : Multi-segment Spring Hammer Impactor

Standards : GB/T2423 (IEC60068-2-75)

Weight : Single-file 1250g, six-gear 2500g

Length : 211mm

Hammer radius : 10mm

OD : 50mm

Contact Now

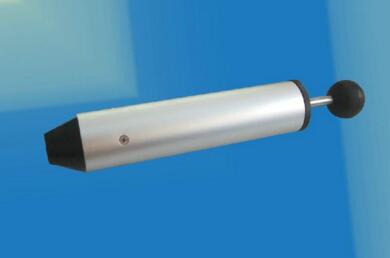

SL-SE03 Multi-segment Spring Hammer Impactor

Product overview

The spring impactor is designed and manufactured according to the GB/T2423 (IEC60068-2-75) standard, and is used for testing the impact resistance of electrical and electronic products, and is the test apparatus necessary for testing the safety performance of electric product casing under mechanical force. It is applicable to household and similar electrical appliances, electronic products, lamps, electrical accessories shell, joystick, handle, knob, LED, signal lights and lampshades, such as mechanical strength test,

To ensure that the tested product can withstand reckless operation and other accidents that may occur,Electrical products can be safe and reliable operation, will not cause harm to people.

Technical parameter

Length	211mm
Weight	Single-file 1250g, six-gear 2500g
OD	50mm
Hammer Weight	60g
Hammerhead Radius	10mm
Impact Assembly	Operation handle and Hammerhead, Hammerhead made of white polyimide
Impact release force	less than 10N
