Footwear Testing Equipment ASTM-D1052 SATRA TM60 Ross Flexing Tester

Name: Footwear Testing Equipment ASTMD1052 SATRA TM60 Ross Flexing Tester
Brand: SKYLINE
Price: 1 USD

Buy cheap Footwear Testing Equipment ASTM-D1052 SATRA TM60 Ross Flexing Tester product

Brand Name : SKYLINE

Model Number : SL-L06

Certification : CE

Place of Origin : CN

MOQ : 1 unit

Price : negoitable

Payment Terms : Western Union, MoneyGram, T/T

Delivery Time : 15 work days

Packaging Details : plywood case

SKYLINE : Ross Flexing Tester

Counter : LCD, 0~99,999,999

Volume : 58 cm × 60 cm × 32 cm

Weight : 58kg

Flexing speed : 100±5cpm

Standards : ASTM-D1052 SATRA TM60 ISO-5423

Contact Now

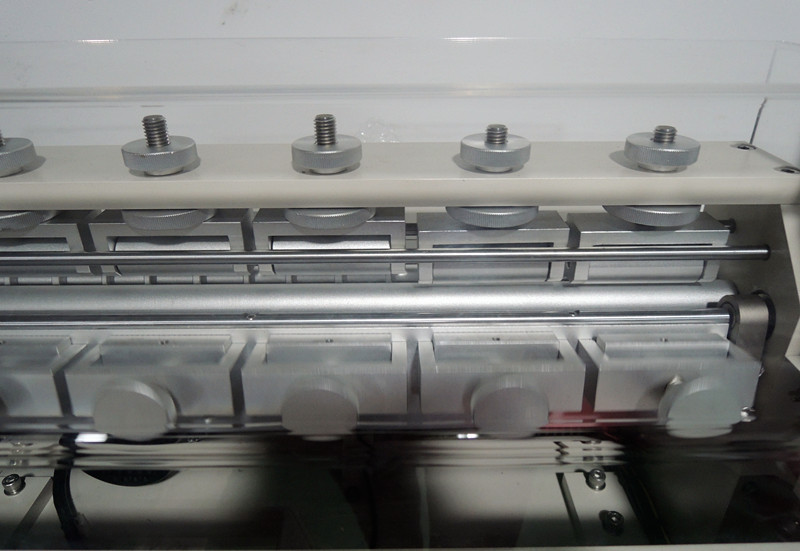

Ross Flexing Tester

Application

Shoes Ross Flexing Tester is used for flexing test at a 90°angle of rubber products, sole materials, PU, etc. by subjecting specifically prepared specimens to repeated bend flexing. The damage and cracking condition is then observed.

Principle

The sample is repeatedly subjected to deflection at a certain angle and a certain degree of frequency to examine the degree of damage and cracking.

Features

1. Be able to test 0~12pcs specimens;

2. Counter with LCD display;

3. 90°bending angle.

Key specification

Specimen No.	6 groups (12pcs)
Flexing angle	90°
Flexing speed	60~100c.p.m (adjustable)
Counter	LCD, 0~999,999
Dimensions	58 cm × 60 cm × 32 cm
Weight	approx. 58kg
Power supply	220V, 50/60Hz single phase; 110V, 60Hz,single phase (as required)

Ross Flexing Tester.pdf

Company Profile.pdf

Testing standards
ASTM-D1052 SATRA TM60 ISO-5423

Please review video of the Ross Flexing Tester operation as below link:

https://youtu.be/hdrDmVXM57w

Footwear Testing Equipment ASTM-D1052 SATRA TM60 Ross Flexing Tester

What is Ross Flex Test?

Ross Flex Tester is designed to determine the resistance of vulcanized or synthetic elastomers to cut growth. The system does so under continuously bend flexing in 90°.
