ISO4210 178N Bicycle Wheel Axial Static Load Testing Machine For Wheel Static Load Deformation Test

Name: ISO4210 178N Bicycle Wheel Axial Static Load Testing Machine For Wheel Static Load Deformation Test
Brand: SKYLINE
Price: 1 USD

Buy cheap ISO4210 178N Bicycle Wheel Axial Static Load Testing Machine For Wheel Static Load Deformation Test product

Brand Name : SKYLINE

Certification : CE

Place of Origin : China

MOQ : 1 unit

Payment Terms : Western Union, MoneyGram, T/T

Supply Ability : 1 pcs/ month

Delivery Time : 15 working days

Packaging Details : plywood case

SKYLINE : Bicycle Wheel Axial Static Load Testing Machine

Standard : BS ISO8098, EN14781, ISO4210, BS EN1476

Load weight : 178N

Cylinder falling speed : 2mm per second

Dimensions : 1035 × 500 × 900mm

Power consumption : 100W

Contact Now

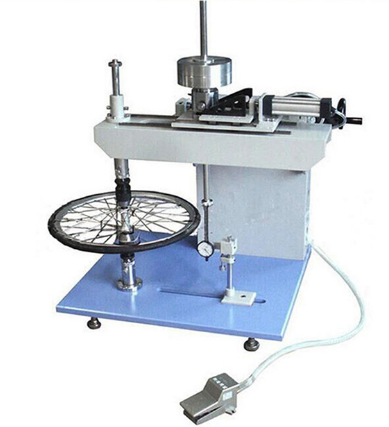

Bicycle Wheel Axial Static Load Testing Machine

Product introduction

The equipment is designed according to the requirements of ISO4210 and GB3565-83 for the axial load test of the wheel. It is suitable for the axial load test of bicycle wheels of various specifications and models. The basic structure is mechanical clamping of the wheel and convenient for clamping. The cylinder lifting weight is used to automatically control the loading time to achieve the test purpose. The device structure itself considers the accurate positioning and measurement method of the device under test.

Use

Suitable for axial load test of bicycle wheels of various specifications and models.

Principle

This machine is to fix the wheel axle of the wheel on the chuck. Then apply a certain load to the wheel rim and observe the deformation. The test machine meets the requirements of GB14746-2006 4.8.

According to the standard

BS ISO8098, EN14781, ISO4210, BS EN14765

Technical parameter

Scope of application	various bicycle wheels of 510-710mm
Load weight	178N
Cylinder falling speed	2mm per second
Dimensions	1035 × 500 × 900mm
Weight	about 50kg
Power consumption	100W
Gas consumption	0.007 cubic meters / minute; pressure: 6 kg / cubic centimeter
