SATRA PM 154 Rub Resistance Tester , 4 Test Groups Shoelace Abrasion Resistance Tester

Name: SATRA PM 154 Rub Resistance Tester 4 Test Groups Shoelace Abrasion Resistance Tester
Brand: SKYLINE
Price: 1 USD

Buy cheap SATRA PM 154 Rub Resistance Tester , 4 Test Groups Shoelace Abrasion Resistance Tester product

Brand Name : SKYLINE

Model Number : SL-L18

Certification : CE

Place of Origin : CN

MOQ : 1 unit

Price : negoitable

Payment Terms : Western Union, MoneyGram, T/T

Delivery Time : 15 work days

Packaging Details : Plywood case

SKYLINE : Shoelace Rubbing Resistant Tester

Movable fixture stroke : 35± 2 mm

Test speed : 60 ± 6 cyles/min

Weight : 50kg

Standards : DIN 4843 SATRA TM 154 ISO 22774 QB/T 2226

Contact Now

SATRA PM154 Footwear Testing Equipment 4 Test Groups Shoeslace Abrasion Resistant Tester

Use

This machine is used to test the rubbing resistance for shoelace of cotton, hemp, chemical fiber or other materials.

Product information
This machine is designed for the resistance of all shoelaces to abrasion. Two shoelaces are horizontally crossed in a moveable clamp, rubbing against each other, so as to determine their abrasive resistance.4 sets of specimens can be tested once.

Technical parameters

Test position	4 groups

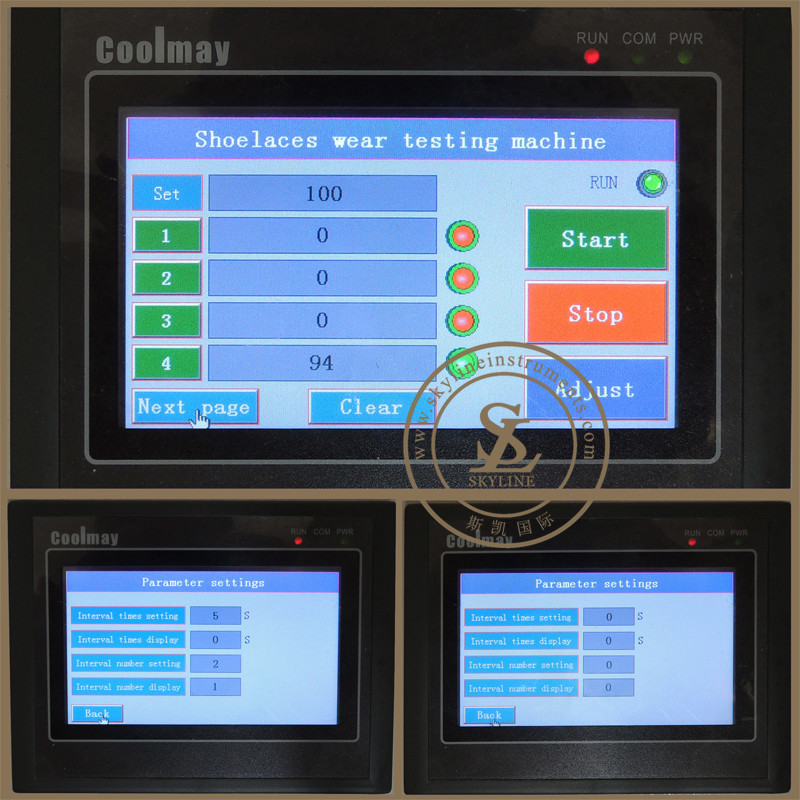

Control	Touch-screen control, 0~999,999
Min. Separation between movable and fixed fixtures	280 ±50 mm
Movable fixture stroke	35± 2 mm
Test speed	60 ± 6 cyles/min
Profile board	Angle 52.5degree; Length120 mm
Stainless metal strip	W: 25mm, L: 250mm
Weight	250 ± 3g
Power supply	1phase AC 220V 50/60HZ
Dimensions ( L x W x H )	66 x 58 x 42cm
Weight	50 kg
Standards	DIN 4843 SATRA TM 154 ISO 22774 QB/T 2226

How is abrasion resistance test done?

Abrasion resistance tests are performed by rubbing a printed sample with an unprinted one to simulate the actual conditions.

SATRA PM 154 Rub Resistance Tester , 4 Test Groups Shoelace Abrasion Resistance Tester
