Four In One Integrated Mattress Testing Machine 0.05 - 1000 Mm/Min For Furniture

Product Information of Mattress Testing Machine

New design Mattress Test Machine (Four in one)
It is more compact and smart than the old model with the following features:
Flexible test table frame. This makes the testing device very effective and space-saving.
Multi-function can do below testing:

1. a. Durability Testing of mattress surface
2. b. Hardness Testing
3. c. Height Testing
4. d. Durability test for the edge of mattress

Controlled by PLC frequency conversion
After simply loosening the front frame reinforcement the specimen can be inserted into a flexible test table frame. This makes the testing device very effective and space-saving.
The extensive testing and evaluation software LabMaster allows for a flexible parameter entry, the execution of different testing procedures, a graphical representation of measured values, test evaluation, and logging.

The firmness rating Hs are determined independently by the programmed. When the pre-set number of cycles is reached, the test is ended automatically

Specification of Mattress Testing Machine

• Field of application Testing of components for beds according to EN 1957
• Specimens Mattresses, cushion frames
• Number of cycles, testing procedure Loading unit can be parameterized with PLC
• measuring device is software controlled
• definition of testing procedures can be done by the user
• Electrical connection 230V/50Hz
• Compressed-air supply Not necessary

  Maximum dimensions	2.0 m x 1.2 m x 0.3 m
  Loading unit Roll, active load	1400 7N
  Stroke	250 mm
  Speed	sinusoidal
  Measuring device	load Load measuring range :0-2 kN
  Measuring device	position Resolution:<1µm
  Measuring range max	500 mm
  Speed	0.05-1000 mm/min
  Dimensions	transport B x T x H 1460 x 2810 x 2050 mm
  Dimensions	installed B x T x H 2100x2810x2350mm
  Weight	1300 kg

Testing Standards of Mattress Testing Machine

EN1957.QB171952.2

durability testing machine

spring testing equipment

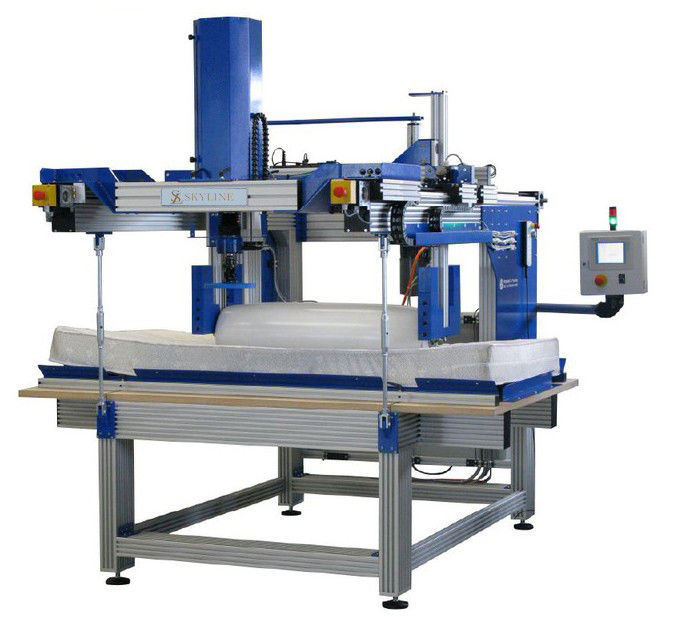

Four In One Integrated Mattress Testing Machine 0.05 - 1000 Mm/Min For Furniture Images
