Flammability Testing Equipment , Tracking Index Tester

Name: Flammability Testing Equipment Tracking Index Tester
Brand: SKYLINE
Price: 1 USD

Buy cheap Flammability Testing Equipment , Tracking Index Tester product

Brand Name : SKYLINE

Model Number : SL-7609

Certification : CE

Place of Origin : China

MOQ : 1 unit

Price : negotiated

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 1 unit/ month

Delivery Time : 10 working days

Packaging Details : plywood case

Standards : IEC60112-2003, UL746, ASTMD3638-92, DIN53480 etc

Dimension : W1100 * D600 * H1220mm

Electrode Material : Electrode of platinum, electrode holder is brass

Power Supply : 220V/AC , 50-60Hz

Electrode Pressure : 1.00N±0.1N

Electrode space : 4.0±0.01mm, angle 60°±5°

Contact Now

Flammability Testing Equipment , Tracking Index Tester

Used range

This machine applies to determine the tracking index for electrics of various products, such as lighting, electronics, electric tools and instruments. It is also used for insulators, plastics, electric connectors and so on.

Principle

In moisture and impurity circumstance, leakage current of insulation will be produced between live parts of different polarity, or between live parts and grounding metals. The electric arc produced will result in short-circuit. This tester is to simulate these conditions, and to determine the tracking index of materials.

Technical parameters

Electrode Material	Electrode of platinum, electrode holder is brass
Electrode Pressure	1.00N±0.1N
Electrode space	4.0±0.01mm, angle 60°±5°
Electrode size	(2.0 ± 0.1mm)×(5.0 ± 0.1mm)×(40.0 ± 5mm), platinum electrode 12mm, 30°±2° incline
Liquid resistance	Liquid A: 0.1%NH4Cl,3.95±0.05Ωm; Liquid B: 1.98±0.05Ωm
Dripping volume	20drippings is 0.380~0.480g; 50drippings is 0.997~1.147g (inching adjustable)
Dripping Height	35.0 ± 5mm, can be adjust
Dripping Time	30 ± 0.1s, digital timer, 0.0-99.99s for setting, 50 drippings time is 24.5min±2min
Dripping count	1~999999, digital display and presetting
Testing voltage	100V~550V(pre-settable)
Voltage drop	8% when the current is 1.0A±0.1A
Tracking	0.50A±10%, delay time exceed 2.00s±10%
Dimension	W1100 * D600 * H1220mm, hole of exhaust Ø90mm
Power supply	220V/AC , 50-60Hz

Standards

According with IEC60112-2003, UL746, ASTMD3638-92, DIN53480 standards.

Flammability Testing Equipment , Tracking Index Tester

Product Tags:

flammability test chamber

flammability test apparatus

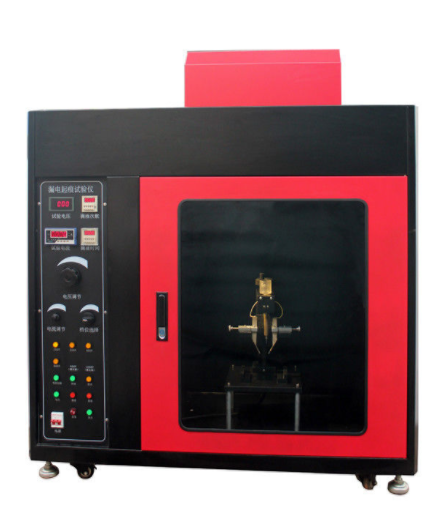

Flammability Testing Equipment , Tracking Index Tester Images
